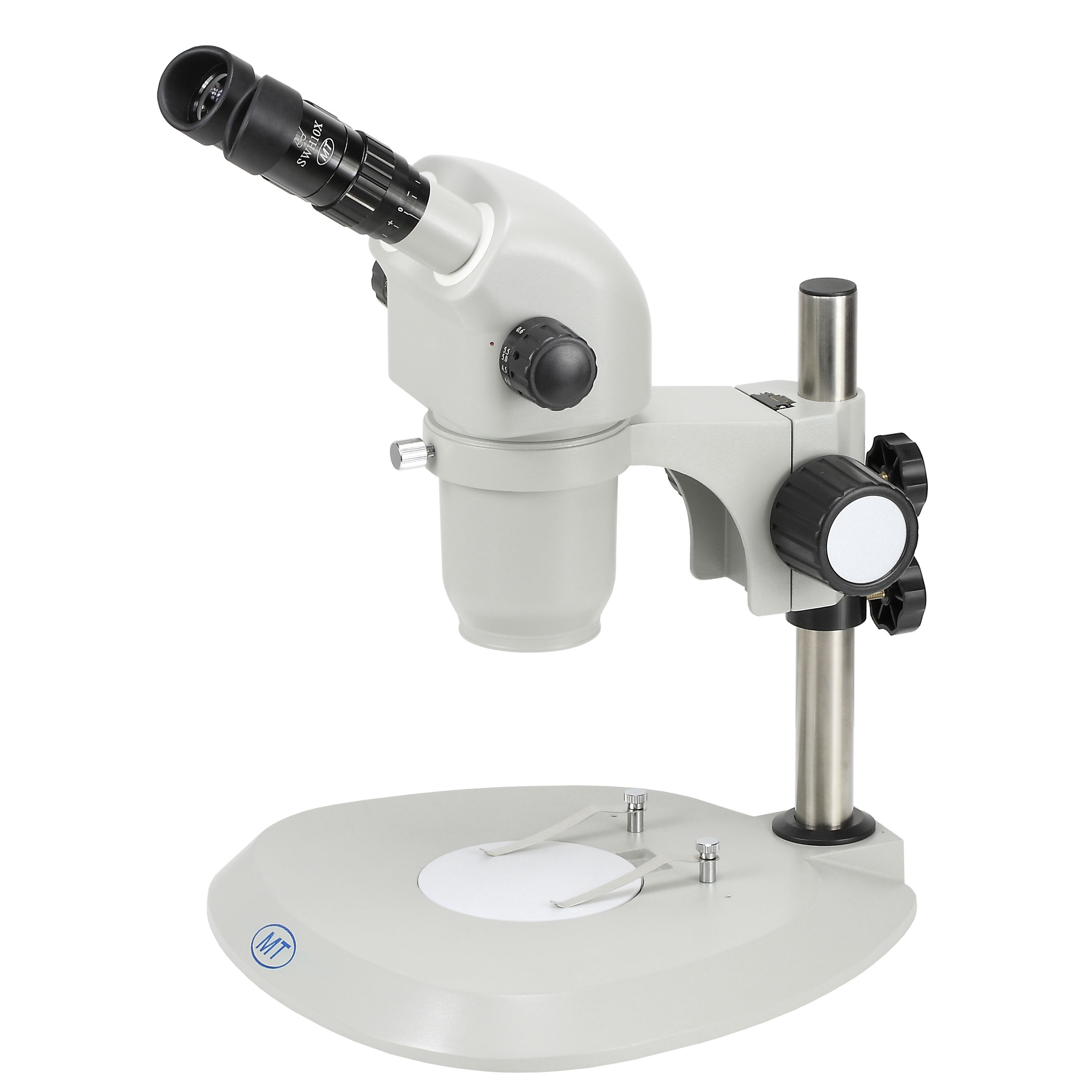

MZS0870 Series

◆ Patented technology design

◆ Long working distance, large depth of field, large zoom ratio

◆ Trinocular main body can be match CCD (CMOS)camera, digital camera

◆ Various eyepieces, divisional eyepieces and auxiliary objectives to be selected

◆ Available to match stands and universal stands, LED ring illuminator, ring fluorescent lamp, fiber and etc.

◆ Widely used in schools, biology engineering and science research, industry assembly for inspection, measurement and quality control

Magnification	Total magnification(standard outfits): 8X~70X, extended total magnification： 420X
Zoom ratio	Continuous zoom magnification: 0.8X~7.0X, zoom ratio 8.8:1
Eyepiece	SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm
Eyetubes	Inclined 35°
WD	108mm
Focus range	50mm（ track stand: 100mm）
Interpupillary distance adjustment range (10X eyepiece)	52mm~76mm
Diopter adjustment range	±6 Diopter
The holder and the head matching dimension	Φ76mm
Distance between the center of the pole and the center of the holder	140mm
Diameter of the pole	Φ25mm
Diameter of the center working stage	Φ95mm
Illuminators	Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top.

Eyepiece	Item	Main body	Specification of different auxiliary objective
Eyepiece	Item	Main body	0.37X	0.5X	0.7X	1.5X	2X
10X	Total Mag.	8X~70X	2.96X~25.9X	4X~35X	5.6X~49X	12X~105X	16X~140X
10X	FOV(mm)	Φ28.75~Φ3.3	Φ74.3~Φ8.5	Φ57.5~Φ6.6	Φ41.1~Φ4.7	Φ19.2~Φ2.2	Φ14.4~Φ1.6
15X	Total Mag.	12X~105X	4.44X~38.9X	6X~52.5X	8.4X~73.5X	18X~157.5X	24X~210X
15X	FOV(mm)	Φ21.25~Φ2.4	Φ57.4~Φ6.6	Φ42.5~Φ4.9	Φ30.4~Φ3.5	Φ14.2~Φ1.6	Φ10.6~Φ1.2
20X	Total Mag.	16X~140X	5.92X~51.8X	8X~70X	11.2X~98X	24X~210X	32X~280X
20X	FOV(mm)	Φ17.5~Φ2	Φ47.3~Φ5.4	Φ35~Φ4	Φ25~Φ2.9	Φ11.7~Φ1.3	Φ8.75~Φ1
30X	Total Mag.	24X~210X	8.88X~77.7X	12X~105X	16.8X~147X	36X~315X	48X~420X
30X	FOV(mm)	Φ11.25~Φ1.3	Φ30.4~Φ3.5	Φ22.5~Φ2.6	Φ16.1~Φ1.8	Φ7.5~Φ0.9	Φ5.625~Φ0.6
WD(mm)		108	275	195	145	50	35

	Stands	SD1~SD18
	Universal stands	U1, U2, U3, U4, U1c, U2c, U3c
	Eyepieces	SWH10X, SWF15X, SWF20X, SWF30X
	Divisional eyepieces	SWH10X-CM0.1XY SWF15X-CM0.05XY SWF20X-CM0.05XY
	Auxiliary objectives	W0.37, W0.5, W0.7, W1.5, W2.0
	CCD adapters	C0.3-S、C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Auxiliary illuminators	ML01, ML02, MLR60, LGY-150Ω
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
